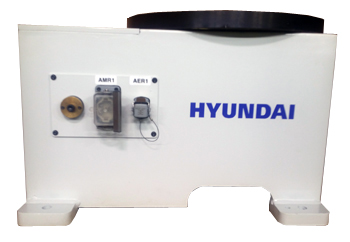

HSP1-1000-02
Payload: 1ton
Direction of rotation:horizont
Features:
> Horizontal drive, High accuracy
Application:
> Spot Welding
Applicable controller:
> Hi5/ Hi5a
| Degree of Freedom | 1Axis | |
Range of Motion | Rotation1 | ±360 ° |
Rotation2 | - | |
Maximun Speed | Rotation1 | 75 °/s |
Rotation2 | - | |
Allowance Moment [N.m] | 2500 kgf.m | |
Allowance Inertia Moment [kg.㎡] | 200 kg.㎡ | |
Repeatability | ±0.1mm | |
| Approx. Weight | 270kg | |
Ambient Temperature | 0 ~ 45℃ (273 ~ 318K) | |
Robot Controller | Hi5/Hi5a | |
Color | Gray(Standard) | |
| Product name | CAD | ||
| HSP1-1000-02 |  |
| Product name | HSP1-1000-02 |
| CAD | |
